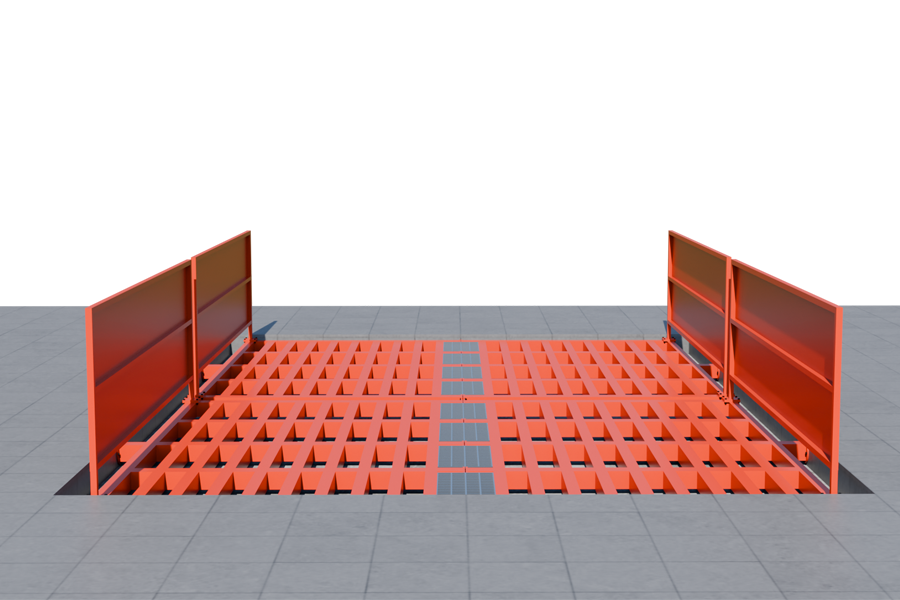

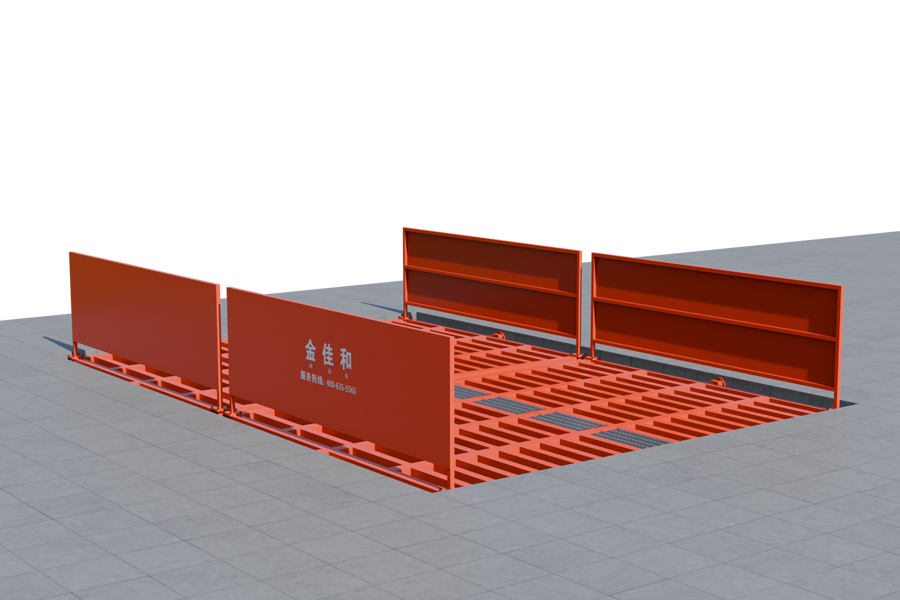

JXL120 Wheel Washer

JXL120 Wheel Washer
Product Introduction:


JXL120 Wheel Washer


The JXL120 Wheel Washer ensures thorough cleaning of engineering vehicles by utilizing multi-directional high-pressure water jets targeting critical lower sections (wheel height level), including vehicle bodies, tires, and undercarriages. This system delivers complete decontamination of vehicles and chassis.


> Highly Efficient And Fast

> Saves Up To 90% Water

> Improves Car Wash Quality

> Reduces Car Washing Costs

> Automated Operation


Send Inquiry
Description

The First Line of Defense for Eco-Friendly Concrete Recycling

As the critical environmental gateway for concrete recycling facilities, the JXL120 Wheel Washer plays an indispensable role in achieving zero-discharge and sustainable operations. Positioned at the exit of the plant, this highly efficient automated system thoroughly cleans vehicle tires before they reach public roads, effectively preventing the tracking of mud, slurry, and concrete residues. By eliminating road contamination and minimizing environmental hazards, the JXL120 ensures strict compliance with environmental regulations. Seamlessly integrated into the overall concrete recovery system, it guarantees that the entire recycling process—from wastewater treatment to final logistics—remains clean, safe, and fully aligned with modern green construction standards.


Item

JXL120 Wheel Washer Specification

Dimensions (LxWxH)

6000*4000*1200mmCustomizable

Power Requirements

Three-phase four-wire 380V 50Hz

Vehicle Type

Various types of engineering vehicles

Control method

Manual, automatic, remote control

Washing method

Vehicle-passing

Sludge removal method

Sludge discharge from sedimentation tank
Inductive methodInfrared, system startup and electrical control
Cleaning waterCirculating waterEnsure that there is sufficient water supply on site.
 Control systemDistribution panel control system

Steel structure surface treatment

Anti-rust primer - spray topcoat

Rinsing time

0 - 2 minutescan be adjusted according to actual situation
Water Pump7.5KW sewage pump2 PCs
Overall power15KW
Rinse pressureDesign pressure 3 - 5KG
Effective pressure of nozzle Base3KG
Side panel4 PCs
Base4 PCsFully automatic sensing + Manual sensing
ControllerTianzheng Electric Appliances
Base steel80*80*3.75mmSquare tube
Side wall sheet 50*50*2mmSquare tube
Number of spray holesAbout 450 PCs
Number of spray nozzle48 PCs
Rinsing pressure 3-5Map
Induction frame1 PC

Electrical cabinet

1 Unit

Sensor

1 Unit


>> Key Features & Advantages

Tri-Mode Control System:

  • Mechanical Auto-Sensing (vehicle-activated)

  • Remote Control

  • Manual Operation

Enables fully automated wash cycles.

Advanced Water Management:

  • Closed-loop water recycling system

  • Minimal fresh water replenishment during continuous operation

  • Significantly reduces water consumption (up to 90% vs. conventional systems)

Technical Advantages:

  • Industrial-Grade Cleaning: Eliminates hardened debris from tires/chassis

  • Zero Dust Pollution Compliance: Meets strict worksite environmental standards

  • Heavy-Duty Construction: Rated for 24/7 operation in harsh environments


>> Primary Applications

Essential for dust control at: Construction sites, Mining operations, Cement plants, Coal mines, Power generation facilities, Waste management/Landfill sites. Guarantees dust-free vehicle exit from controlled zones, preventing off-site contamination.
